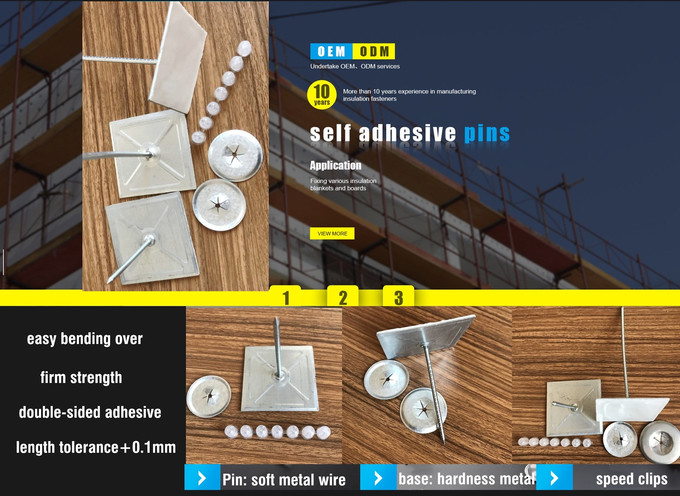

63.5mm Galvanized Steel Self Stick Insulation Pins To Install Foam Insulation Panels

Specifications Of The Self Stick Insulation Pins:

1. Self stick insulation pins are easy to use and handle because it requires no tools or machines.

2. It's suitable for steel or other smooth surfaces which should be clean and dry, free of dust,

grease, oil or any other loose matter.

3. Simply remove the release paper backing, place on the surface and impale the insulation

over the pin.

4. The locking clip/washer is then pressed on to the pin to complete the final mechanical joint.

5. Bonding takes place immediately but full strength adherence is achieved after 24 hours.

material	base size	pin diameter	pin length	fixed parts
pin material: anneaded steel wire anneaded stainless steel wire aluminum wire base material: hardness steel stainless steel	base size: 50x50mm base thickness: 0.4mm+1mm base type: double adhesive liner: siliconized paper	2.7mm	38mm	self locking washer doom cap washer
		2.7mm	45mm
		2.7mm	55mm
		2.7mm	62mm
		2.7mm	90mm
		2.7mm,3.0mm	114mm
		2.7mm,3.0mm	120mm
		2.7mm,3.0mm	140mm
		2.7mm,3.0mm	160mm
		2.7mm,3.0mm	180mm
		2.7mm,3.0mm	203mm
		2.7mm,3.0mm	230mm

Self Locking Washers For The Self Stick Insulation Pins:

Self Locking Washers Used To Fasten Self Stick Insulation Pins
type	size	material	center hole
round	25mm	galvanized steel, stainless steel, aluminum	2mm-5mm
round	30mm	galvanized steel, stainless steel, aluminum	2mm-5mm
round	32mm	galvanized steel, stainless steel, aluminum	2mm-5mm
round	38mm	galvanized steel, stainless steel, aluminum	2mm-5mm
square	32mmx32mm	galvanized steel, stainless steel, aluminum	2mm-5mm
square	29mmx31mm	galvanized steel, stainless steel, aluminum	2mm-5mm
square	38mmx38mm	galvanized steel, stainless steel, aluminum	2mm-5mm
square	50mmx50mm	galvanized steel, stainless steel, aluminum	2mm-5mm
square	65mmx65mm	galvanized steel, stainless steel, aluminum	2mm-5mm
dome cap	30mm	galvanized steel, stainless steel, aluminum	2mm-5mm
dome cap	32mm	galvanized steel, stainless steel, aluminum	2mm-5mm
dome cap	38mm	galvanized steel, stainless steel, aluminum	2mm-5mm
dome cap	40mm	galvanized steel, stainless steel, aluminum	2mm-5mm
dome cap	50mm	galvanized steel, stainless steel, aluminum	2mm-5mm

Application Of The Self Stick Insulation Pins:

1. Self stick insulation pins can only be stuck on clean, dry and smooth surface.
2. Remove any duct, loose paint, oil etc. Cleaning the surface is recommended.
3. Peel off the backing paper.
4. Place the self stick insulation pins in the required position.

5. Press the base against the cleaning surface.

6. Impale the insulation over the point of the self stick insulation pins.

7. Secure the insulation with the self locking washers

8. Bend or remove excess pins

Huihao Hardware Mesh Product Limited.

1. We choose the best quality materials for making insulation fasteners 2. We do copper plating, zinc coated and phosphating pretreatment for the raw material 3. We purchase the multi-station cold forging machine to ensure the better mechanical property of shear connector to match the standard (BS EN ISO13918:2008, AWS D1.1, etc.), or as per customer's special requirement. 4. We use the automatic riveting machine to install . 5. After rust prevention, HUIHAO insulation fasteners can suitable for long time ship on the sea. 6. Short delivery time because of our reasonable production flow management.

15 YEARS EXPERIENCE
PROFESSIONAL MANUFACTURER OEM/ODM
ONE-STOP CUSTOM FACTORY
MEET YOUR INDIVIDUAL PROCESSING
ENSURE QUALITY AND PRECISION

About HUIHAO

China HUIHAO was established in 2013. We mainly manufacture and supply Wire mesh and insulation fastener. Our corporate headquarter is located in Changan Industrial area Shijiazhuang Hebei, factory is located in Anping Town Hengshui City. Both sites are adjacent to highway intersections, convenient and near to Tianjin ports.

We have been focused on manufacturing, research and development of wire mesh and insulation fastener more than 10 years, HUIHAO is a leading Chinese insulation fastener manufacturer knowing the European and American standards well, supply a full ranges of wire mesh, insulation pins and washers. They are widely used in HVAC, petrochemical industry, equipments insulation, shipyards, wall insulation etc. And moreover, we develop the solar panel mesh clips. In 2020 we expand our business lines of laser cutting and various customized stamping parts, providing one - stop OEM services.

Our main products are Round & Rectangular Lacing Anchor, Self Locking Washer, various of Cup Head Pin (SS Quilting Pin, Cup Head Weld Pin Insulated, Cup Head Weld Pin Without Insulation), Duct Liner Weld Pin, Perforated Base Pin, Self Adhesive Pin, Wire Mesh, various of Solar Panel Mesh Clip (stainless steel, aluminum and nylon)etc. All of our products are produced by own automatic production.
