Waste Plastic Recycling Plant, PET Bottle Cleaning Aand Recycling Equipment

technical data of Waste Plastic Recycling Plant, PET Bottle Cleaning Aand Recycling Equipment

machine name	technical data	picture
Conveyor belt	3kw 5m*0.6m 1000kg/h Adjustable height Machine quality: carbon steel 300kg
Label removing machine	18.5kw+3kw 5m*1.2m*1.5m 1000kg/h Screw length:500cm Blade Quantity: alloy cutter head Machine quality: carbon steel Rotating speed:600r/min 1200kg
Conveyor belt	3kw 8m*0.8m Height can be adjusted to 2.8m 1000kg/h 450kg
Crusher	75kw 2.8m*2.2m*2.8m 1200kg 1000kg/h Fixed blades:6pic Rotated blades:10pic 14 16 , at your request Mesh diameter:1.4cm 1.6cm 1.8cm Blade quality: carbon steel Spindle Speed:628r/min
rinsing and separating tank	4kw*2 6m*1.5m*1.3m 1000kg/h 400kg
Automatic lifting dehydrator	4kw 200kg 1000kg/h
Friction machine	7.5kw. 3m long diameter:0.4m 350kg
Screw feeding machine	4kw 4.5m long Diameter:0.4m 1000kg/h 150Kg
Boiler	Used to heat the hot washer This boiler can be heated by natural gas or oil
Hot washer pot	Diameter:2.2m 2.5m heigh 11 kw*2 Two hot washer needed
Friction machine	Remove the glue of the flakes through friction 22kw 3.5m long, diameter:0.7m 1000kg/h
Rinsing and separating tank	send the flakes to the dehydrator 8kw 7m*1.5m*1.3m 1000kg/h Carbon steel

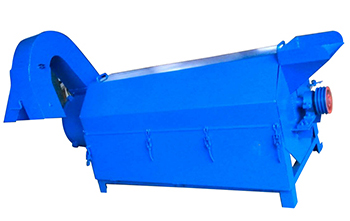

Horizontal dehydrator	Used to dehydrate the cleaned flakes, moisture content :less than 3%, Carbon steel and stainless screen 37kw 4.2m*1m*1.7m Mesh size:5mm Carbon steel

application of Waste Plastic Recycling Plant, PET Bottle Cleaning Aand Recycling Equipment

• Screw feeding conveyor : Convey the waste PET PP to the crusher
• Crusher: Crush the waste PET PP.
• Flotation rinsing unit: Separate the bottles caps and impurity from the crushed PET PP flakes.
• Screw feeding conveyor: Convey the waste PET PP to the hot washer.
• Hot washing tank ( 2pcs): wash the PET PP flakes.
• Screw feeding conveyor(2pcs): Abstract the PET PP flakes from the hot washer.
• High speed Scrubbing washing unit: remove the impurity and the rest dirty in the surface of the PET PP flakes.
• Floating tank: Separate the caps and impurity from the PET PP flakes again.
• Electric heating drying unit:dry the PET PP flakes.
• Pet pp washing recycling line (crush+ wash+ dry)

advantages of Waste Plastic Recycling Plant, PET Bottle Cleaning Aand Recycling Equipment

• High capacity:600kg/h-3000kg/h
• The whole line can be controlled by a control cabinet, it is easy to operate, convenient.
• 1-4 workers needed to operate the line and manual power saving.
• strong machine , thickened carbon steel/ stainless steel, wear resistance, durable and of long usage life.
• dynamic balance, will not shake when operating.
• stable operation, can continuous work.
• double painting, inside antirust paint and outside paint.
• complete equipped. Motor, vee belt, start switch, protective cover
• We could send engineers to your side if necessary.
• It is multi-functional automatic production line,can be recycle applied to PET/PP/PE/HDPE/LDPE/ABS ect.many materials.
